Connector Pins with Retention Features | Cold-Formed | Manufacturer

Retention force varies by pin design, material, retention feature, and hole geometry. Electropin's cold-formed pins with star retention features can achieve a diameter up to 50% greater than the raw wire diameter, generating high radial interference and strong pull-out resistance. Contact Electropin's engineering team for retention force data specific to your application.

Electropin offers four retention feature types: Star, Tabs/Spline, Inscribed Square, and Flat. Each provides distinct anti-rotation and pull-out resistance characteristics. The star feature can expand pin diameter by up to 50% over the wire diameter, making it especially effective for high-retention press-fit and post-insertion applications.

Pins are available in lead-free brass, stainless steel, and other metals. Lead-free brass provides good electrical conductivity and formability, while stainless steel offers higher strength and corrosion resistance. All materials are REACH and RoHS compliant, eliminating the regulatory concerns associated with traditional leaded brass used in machined pins.

Electropin's cold-formed connector pins support three primary mounting methods: press-fit into metal, through-hole PCB mounting, and post-insertion into molded plastic housings. Some designs, such as grooved and hinge pins, are also optimized for high-speed automation assembly lines where pins slide down tracks without requiring orientation.

When raw materials are available, Electropin can begin manufacturing and deliver a first batch of cold-formed connector pins in as little as two weeks. Subsequent production batches are scheduled on a customer-specified timeline, and production volume can be scaled dramatically to match changing demand.

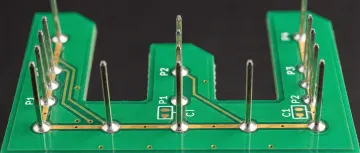

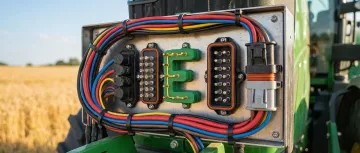

Electropin supplies custom cold-formed connector pins to the automotive, farm equipment, medical device, computer and electronics, and circuit board manufacturing industries. Their pins are used in applications ranging from automotive harness connectors and PCB through-hole assemblies to medical device interconnects and molded plastic housing post-insertions.
