Introduction
Board connector pins are the contact elements inside every PCB connector that carry current and signal between boards, wires, and modules. Small as they are, these pins determine whether a connection holds up in the field or fails under load.
With dozens of pin types, geometries, and material options available, selecting the wrong pin creates real consequences: connection failures, expensive rework, and reliability issues that surface months after deployment. A poorly chosen pin can cause intermittent contact, voltage drop, or complete signal loss regardless of how well the surrounding connector housing is specified.
This guide explains what board connector pins are, the main types engineers encounter, and how to choose the right one for your application based on current load, mechanical environment, and manufacturing constraints.
TLDR
- Board connector pins are the conductive contact elements that physically carry electrical signals and power between PCB components
- The four primary types — through-hole, surface-mount, press-fit, and edge connector pins — differ in attachment method and environmental suitability
- Wrong pin selection causes mechanical failure, signal loss, or costly rework — match your choice to current load, mating cycles, and operating environment
- Gold and nickel plating choices, base material, and dimensional precision all directly affect contact resistance and service life
- For high-volume production, custom-manufactured pins deliver tighter tolerances and far fewer defects — Electropin's automatic die rolling process achieves a defect rate of just 1 in 600,000,000
What Are Board Connector Pins?
Board connector pins are the individual conductive elements housed within a PCB connector — distinct from the plastic housing or locking mechanism. These metal components make and maintain the actual electrical connection.
A pin works by creating a conductive path when it mates with a corresponding socket, pad, or plated hole. This allows current or signal to transfer from one point on a circuit to another. The IPC-T-50N standard defines a connector contact as "the conducting member of a connecting device that provides a separable connection."

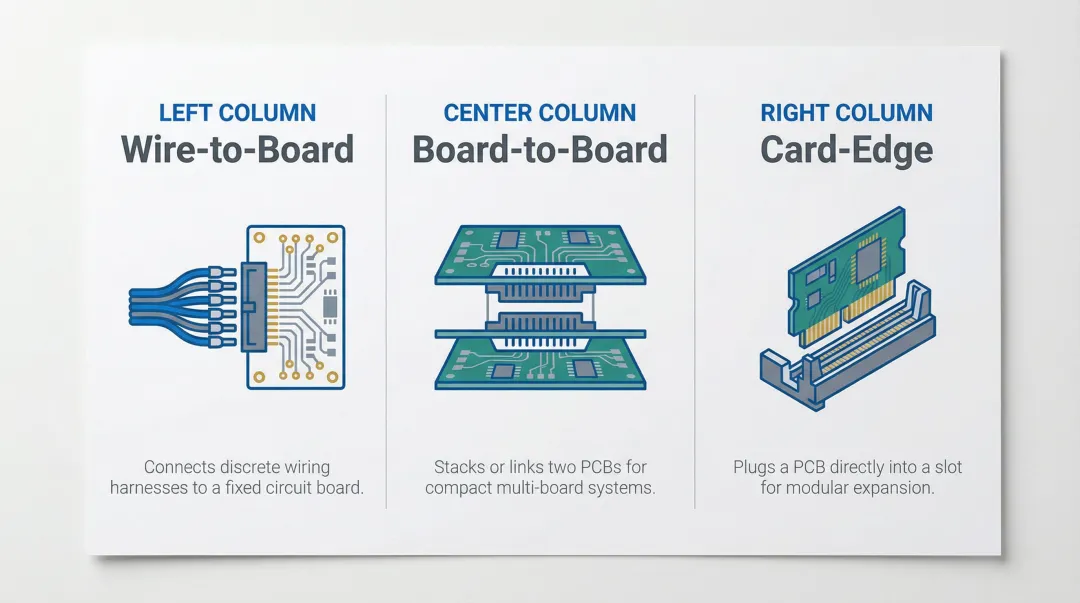

Board connector pins appear across three primary assembly types:
- Wire-to-board — connecting external wiring to a PCB
- Board-to-board — linking two circuit boards directly
- Card-edge — mating a PCB's edge contacts with a slot connector
These assemblies serve industries ranging from consumer electronics and automotive ECUs to medical devices. Manufacturers like Electropin produce custom contact pins for these applications using automatic die rolling, a cold-forming process that shapes metal stock into finished pins without cutting or machining.
Why Board Connector Pins Matter in PCB Design
The pin is the point of failure or success in any connector assembly. A poorly formed or mismatched pin causes intermittent contact, voltage drop, or complete signal loss, even when the surrounding connector housing is correct.
What goes wrong without well-matched pins:
- Undersized cross-sections generate excessive I²R heating, accelerating oxidation and potentially melting the housing
- Unplated or incorrectly plated contacts develop insulating oxide layers that raise contact resistance over time
- Mismatched mating cycles degrade the contact surface, causing progressive resistance increase and intermittent failures
Each of these failure modes shares a common cause: the wrong pin for the application. Pin selection has to happen before layout is finalized — once a PCB is drilled or pads are sized, switching pin types requires a redesign. Understanding types upfront prevents expensive late-stage changes and field failures. A SERMA Technologies study of ~200 connectors identified poor electrical contact and fretting corrosion as primary failure categories across a decade of testing.
Types of Board Connector Pins
Choosing the wrong pin type is a common source of field failures — a connector that looks fine on the bench can crack, loosen, or wear out under real operating conditions. The four main types — through-hole, surface-mount, press-fit, and edge connector — each suit different assembly methods, stress environments, and performance requirements. Understanding what sets them apart makes the selection decision straightforward.

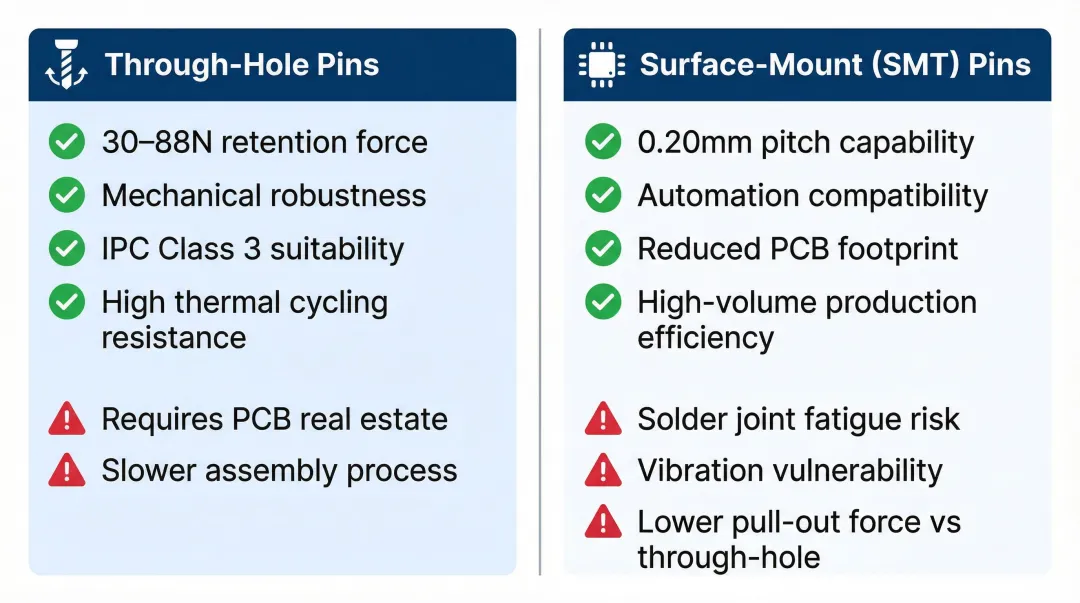

Through-Hole Pins
Through-hole pins are solid or tubular contacts inserted through pre-drilled PCB holes and soldered to pads on the opposite side. The solder bond distributes mechanical stress along the pin barrel and into the board substrate — unlike SMT pins that only engage the surface layer, through-hole pins anchor through the full board thickness, giving them substantially higher pull-out resistance.
Best suited for connectors under vibration, frequent mating cycles, or physical stress — industrial control panels, automotive connectors, and power supply boards are typical applications.
Key strengths:
- Retention forces range from 30N to 88N depending on pin diameter
- Well-established soldering process governed by clear quality standards (IPC-A-610)
- Reliable in harsh environments and high-current applications
- Standard for aerospace and automotive where IPC Class 3 reliability is required
Limitations:
- Drilled holes consume PCB real estate, making this incompatible with fine-pitch designs
- Slower to assemble than automated SMT lines
- Minimum 75% solder fill required for Class 2/3 assemblies per IPC-A-610
When density and automation throughput matter more than pull strength, surface-mount pins offer a different set of tradeoffs.
Surface-Mount (SMT) Pins
SMT pins have flat tails or gull-wing leads soldered directly to copper pads on the PCB surface — no drilling required. Because both electrical continuity and mechanical holding rely entirely on the surface solder joint, this attachment method is what enables automated pick-and-place assembly and very tight component spacing.
Best suited for compact, high-density PCBs in smartphones, laptops, wearables, and high-volume consumer electronics — particularly where the connector won't face heavy physical stress.
Key strengths:
- Pitches down to 0.20mm enable denser layouts than through-hole designs allow
- Fully compatible with automated assembly lines
- Faster and lower-cost to produce at volume
- Supports double-sided component placement
Limitations:
- Solder joints crack or fatigue under pull, torque, or vibration
- Some SMT BGA connectors show failure by 500 thermal cycles (-55°C to +125°C)
- Frequent mating/unmating without mechanical support degrades joints over time
- High-stress applications may require added retention features like metal pegs
Where solder joint reliability is itself the risk variable — particularly in safety-critical systems — press-fit pins eliminate the problem entirely.
Press-Fit Pins

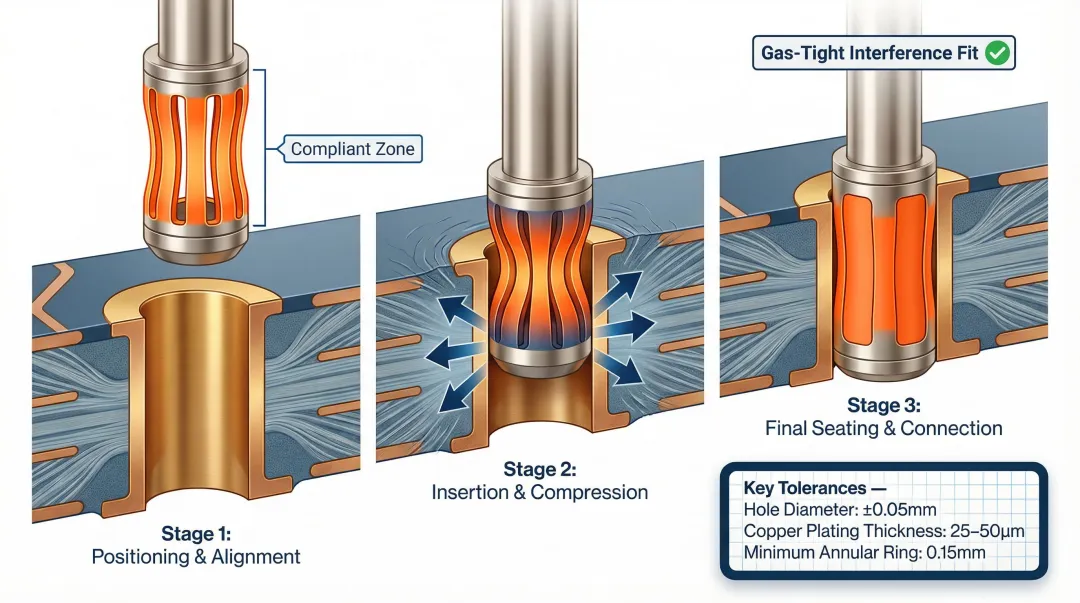

Press-fit pins have a compliant, elastically deformable zone that compresses on insertion into a plated through-hole, then springs back to form a gas-tight mechanical and electrical connection — no solder, no heat, no adhesive. That makes press-fit the only major pin type where the interference fit alone is the joining mechanism.
Best suited for aerospace, telecom backplanes, server boards, and automotive safety systems (airbag control units, ABS, engine control) — anywhere solder joint quality is a liability or heat-sensitive components rule out reflow soldering.
Key strengths:
- Eliminates solder defects: voids, whiskers, cold joints
- Joints are inspectable and replaceable without damaging the PCB
- Maintains performance across wide temperature cycles
- Specified for space-grade components per ESCC standards
Limitations:
- Hole diameter tolerances must be held to ±0.05mm per IEC 60352-5 — incorrect sizing causes loose fit or board delamination
- Requires specialized insertion tooling
- PCB barrel needs 25–50µm copper plating with a minimum 0.15mm annular ring
For applications where the board edge itself serves as the connector interface — eliminating the need for a discrete pin component altogether — edge connector contacts are worth understanding.
Edge Connector Pins (Card Edge Contacts)
Edge connector contacts aren't discrete pins at all — they're the gold or nickel-gold plated fingers etched directly onto the board edge during fabrication. The "pin" is the PCB itself. No separate component is installed; the contact is defined when the board is made and mates with a receptacle connector on a second board or backplane.
Best suited for high-cycle plug-in interfaces — PCIe expansion cards, memory DIMMs, gaming cartridges, and modular industrial systems where end users insert and remove boards repeatedly.
Key strengths:
- No connector assembly required on the card side, keeping the profile minimal
- High pin counts in a compact linear footprint
- Excellent contact reliability with correct gold plating
- PCIe specifies 50 mating cycles with proper plating
Limitations:
- The contact surface is the PCB — it cannot be replaced if worn or damaged
- Plating spec must match the intended cycle count: PCIe requires minimum 30 microinches (0.76µm) hard gold over 50 microinches (1.27µm) nickel
- ENIG is unsuitable for edge contacts; its soft, thin gold layer wears through quickly
- Receptacle alignment must be precise or contacts degrade prematurely
How to Choose the Right Board Connector Pin
The "right" pin type is defined by your application's constraints, not by familiarity or availability. A pin optimized for an automotive ECU is likely wrong for a compact wearable.
Current and Voltage Load
Pin cross-sectional area and material conductivity must match the circuit's amperage requirements. Undersized or high-resistance pins create heat and voltage drop.
TE Connectivity's current rating reference for their Dynamic Series connectors (based on 30°C temperature rise, all contacts energized) shows:
| Wire Size (AWG) | Maximum Current |
|---|---|
| 26 | 3A |
| 24 | 4A |
| 22 | 6A |
| 20 | 8A |
| 18 | 12A |
| 16 | 15A |
These are benchmark values under controlled conditions. Real-world applications require derating based on ambient temperature, thermal coupling between adjacent pins, and PCB trace capacity per IPC-2152.

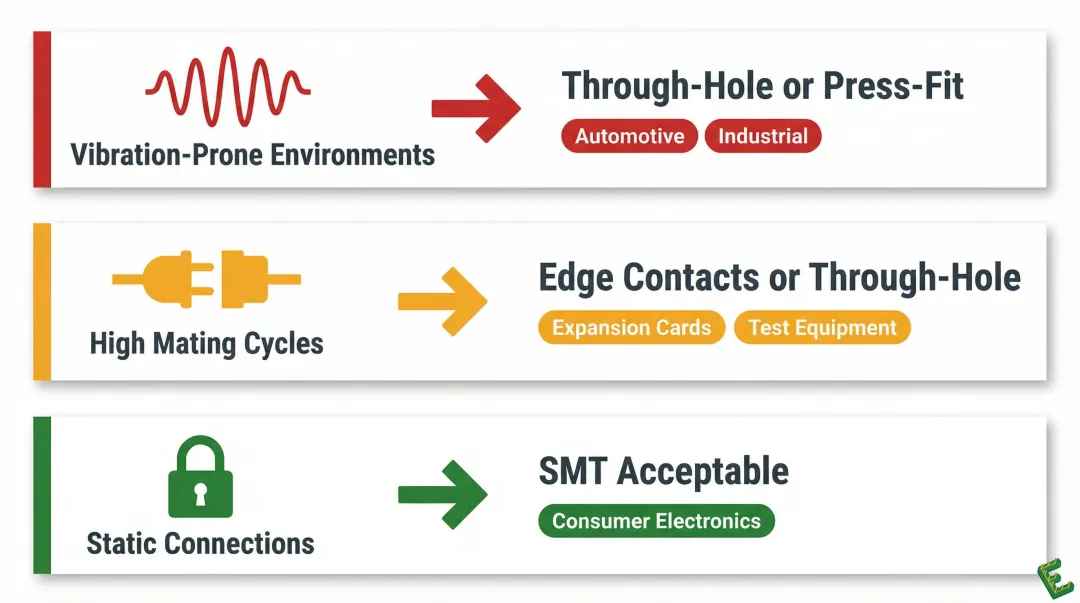

Mechanical Environment
Through-hole and press-fit pins resist pull-out and vibration. SMT pins do not. Match pin type to the physical stresses the connection will face:
- Vibration-prone environments (automotive, industrial) → Through-hole or press-fit
- High mating cycles (expansion cards, test equipment) → Edge contacts with proper gold plating or through-hole
- Static connections (consumer electronics) → SMT acceptable with proper pad design
PCB Layout and Manufacturing Process
The assembly method must be compatible with the pin type chosen:
- Hand solder, wave solder → Through-hole
- Reflow oven, automated SMT line → Surface-mount
- Press-fit tooling → Press-fit pins
- PCB fabrication → Edge contacts
Switching pin types late in design can force a full layout revision. Specify pin type during schematic capture, not after layout completion.
Pin Material and Plating
Base material (copper alloy, phosphor bronze, beryllium copper) determines conductivity and spring force. Plating (gold, tin, nickel) determines corrosion resistance, contact resistance, and cost.
Gold vs. Tin Plating Trade-offs:
| Characteristic | Gold Plating | Tin Plating |
|---|---|---|
| Contact Resistance | Stable, low (≤20mΩ typical) | Variable, can exceed 50mΩ over life |
| Corrosion Resistance | Excellent, inert | Susceptible to oxidation and fretting |
| Mating Cycle Durability | High (50-2,500 cycles depending on thickness) | Low (<50 cycles per industry heuristic) |
| Cost | Significantly higher | Lower initial cost |
| Whisker Risk | None | High with pure tin; requires nickel underplate |
| Best Applications | High-reliability, high-cycle, low-voltage | Low-cycle, cost-sensitive, non-harsh environments |
Critical: Never mate gold-plated pins with tin-plated pins. The combination accelerates galvanic corrosion and fretting, both of which significantly increase reliability risks.
Manufacturing Precision and Consistency
In high-volume or safety-critical applications, pin geometry consistency from the first part to the millionth matters. Irregular pin dimensions cause intermittent contact or assembly line jams.

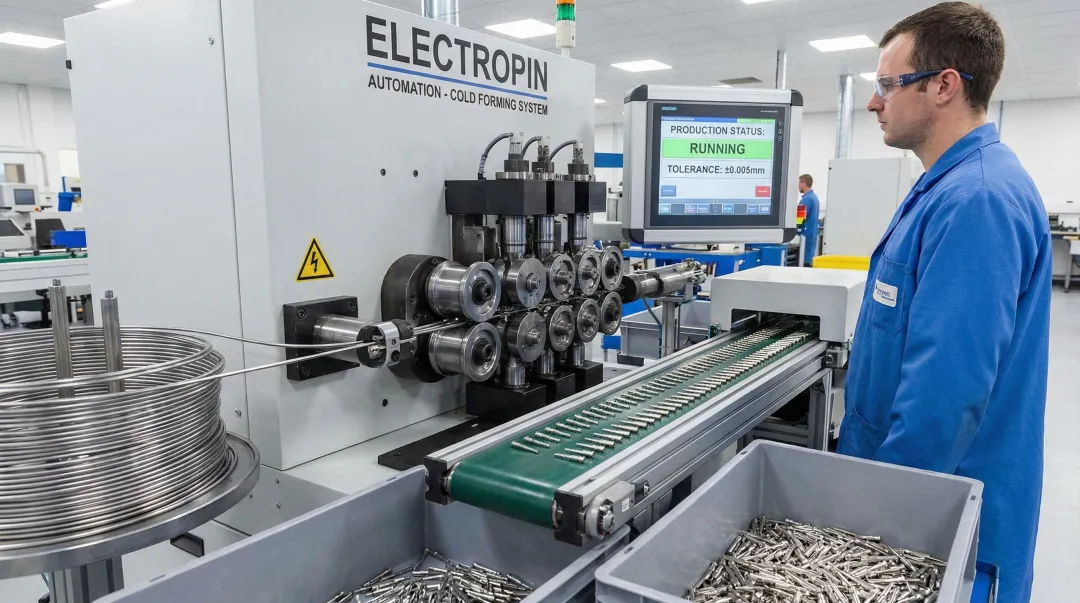

Electropin's automatic die rolling process directly addresses this problem. Unlike machining, where cutting tool edges dull with every pin produced (causing early-batch parts to differ measurably from late-batch parts), die rolling tools don't dull or change shape with heat.
The result: Electropin holds a defect rate of 1 in 600,000,000, sustaining that consistency across production runs of half a billion parts.
For press-fit pins specifically, this consistency is especially important. Finished hole size tolerances of ±0.05mm are typical, and any variation in pin true position or straightness causes high insertion forces, bent pins, or unreliable contacts that may pass initial testing but fail in the field.
Common Mistakes When Selecting Board Connector Pins
Even well-engineered boards fail when pin selection is treated as an afterthought. These are the most common errors engineers make — and how to avoid them.
Defaulting to through-hole for familiarity: Through-hole pins offer strong mechanical retention, but SMT or press-fit often delivers the same electrical performance with a fraction of the board footprint. In high-density designs, that real estate matters.
Ignoring plating specs to cut cost: Tin-plated pins corrode in high-cycle or humid environments, driving up contact resistance over time. NASA linked tin whisker failures to the GALAXY IV satellite loss and a 1986 pacemaker Class I recall. If tin is unavoidable, always specify nickel underplate.
Qualifying on samples, not production-grade parts: A pin that passes prototype review can still fail at scale if dimensional variation isn't controlled. For press-fit applications:
- Require formal capability studies (Cpk) on PCB finished-hole size and pin true position before production ramp
- Monitor force-vs-distance during insertion
- Define acceptance criteria for AOI and/or X-ray inspection
Mating dissimilar platings: Gold-to-tin combinations accelerate fretting corrosion and create galvanic effects. Most connector manufacturers explicitly warn against this pairing — check the datasheet before mixing plating types.
Conclusion
Board connector pins — whether through-hole, surface-mount, press-fit, or edge contact — each exist to solve a specific combination of mechanical, electrical, and manufacturing constraints. No single type is universally best.
Pin selection made early in the design process prevents costly rework and field failures later in production. A few decisions that matter most:
- Specify the right pin type during schematic capture, before layout locks in footprints
- Verify plating and base material compatibility with your operating environment
- Confirm your manufacturer can hold consistent geometry from the first part to the millionth
For high-volume applications, that last point is where quality is won or lost. Electropin's automatic die rolling process produces custom connector pins with a defect rate of 1 in 600,000,000 — a level of consistency that machined alternatives can't match at scale.
Frequently Asked Questions
What are pin connectors used for?
Pin connectors establish the conductive pathway between PCBs, wires, and electronic components — carrying power and signals. They are used in virtually every electronic device from consumer gadgets to automotive control systems and medical equipment.
What are the different types of PCB pins?
The four main types are through-hole pins, surface-mount pins, press-fit pins (solderless, friction-held in plated holes), and edge connector contacts (plated fingers along the board edge). Each suits different mechanical strength, assembly method, and density requirements.
What is a 4 pin Berg connector used for?
A 4-pin Berg connector is a small, 2.54mm-pitch through-hole connector commonly used to carry low-voltage power or drive signals between internal PC components. Historically used for floppy drive power, it's still seen in fan headers and some embedded system boards.
What materials are board connector pins typically made from?
Pins are typically made from copper alloys — brass, phosphor bronze, or beryllium copper — for conductivity and spring force, then plated with gold, tin, or nickel. Gold delivers superior corrosion resistance; tin costs less but can oxidize over time and is prone to whisker growth.
What is the difference between through-hole and surface-mount pins?
Through-hole pins are soldered into drilled holes, offering strong mechanical retention (30N+ pull-out force) for high-stress environments. Surface-mount pins attach to surface pads for compact, automated assembly but provide less pull-out resistance and are more vulnerable to solder fatigue under vibration.
How does pin pitch affect board connector performance?
Pitch — the center-to-center spacing between pins — determines contact density and current capacity. Smaller pitches (down to 0.20mm) enable denser layouts but lower the per-pin current rating due to thermal coupling, and require tighter manufacturing tolerances (±0.05mm typical) to avoid short circuits.
