A PCB jumper is a small conductive pin or shunt that bridges two exposed header posts on a circuit board to complete a specific electrical path. It allows designers to offer configurable options — such as baud rate selection or boot mode — without redesigning the board. Jumpers are removable, making reconfiguration fast and tool-free.

PCB pins include through-hole connector pins, press-fit pins, solid contact pins, barbed pins, grooved pins, knurled pins, dowel pins, hinge pins, and gauge stop pins. Each type offers different retention features — such as star, spline/tabs, inscribed square, or flat — suited to specific mounting methods including through-hole PCB mounting, press-fit into metal, or post-insertion into plastic.

Electropin's PCB jumper pins are available in lead-free brass and stainless steel. Lead-free brass offers excellent electrical conductivity and formability, while stainless steel provides superior hardness and corrosion resistance. Both material options fully eliminate REACH and RoHS compliance concerns, making them suitable for regulated industries such as automotive and medical devices.

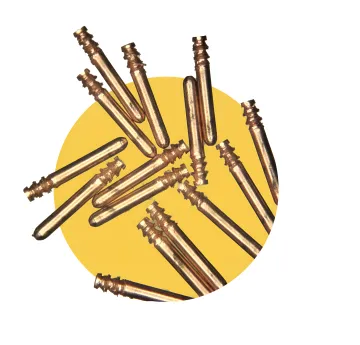

Electropin's cold-formed pins are available with four retention feature types: star, tabs/spline, inscribed square, and flat. The star feature can expand pin diameter up to 50% greater than the source wire diameter, providing high pull-out resistance. These features support anti-rotation and high-retention-strength applications in plastic housings and metal press-fit assemblies.

Electropin can begin manufacturing and deliver a first batch of custom cold-formed pins in as little as two weeks when raw materials are available. Subsequent batches are delivered on a customer-specified timeline. Production volume is highly scalable, allowing rapid ramp-up to meet sudden increases in demand without compromising quality or lead time commitments.

Yes. Electropin provides Design for Manufacturing (DFM) consultation, custom pin design refinement, and collaborative engineering support for every project. With over 35 years of hands-on experience, the team helps customers optimize pin geometry, material selection, and retention features to ensure manufacturability, performance, and cost-efficiency from prototype through full production run.
