PCB Mounting Pins | Cold-Formed Precision | Manufacturer

Mounting in PCB refers to the method used to attach pins or components to a circuit board. The two main types are through-hole mounting, where a pin lead is inserted into a drilled hole and soldered on the opposite side, and press-fit mounting, where interference-fit retention features such as stars or splines mechanically lock the pin into the hole without solder — making it ideal for high-vibration environments.

PCB mounting pins are attached using two primary methods: through-hole mounting, where the pin is inserted into a drilled hole and soldered to the board, and press-fit mounting, where a retention feature such as a star or spline mechanically locks the pin into the hole without solder. Electropin's cold-formed pins support both methods across brass and stainless steel materials.

Electropin offers four retention feature options: Star, Tabs (Spline), Inscribed Square, and Flat. The star feature can expand diameter up to 50% greater than the wire raw material, providing strong anti-rotation and pull-out resistance. These features are available across connector, barbed, press-fit, grooved, and other pin types.

Electropin manufactures pins in lead-free brass and stainless steel. Lead-free brass offers excellent conductivity and ease of forming, while stainless steel provides superior hardness and corrosion resistance. Both materials are available without leaded alloys, ensuring REACH and RoHS compliance without requiring additional processing steps.

Electropin's proprietary automatic die rolling technology achieves a defect rate of just 1 in 600,000,000 pins produced. Because the die rolling tools never dull, every pin from the first to the millionth is produced with identical precision, eliminating quality drift and reducing rework costs.

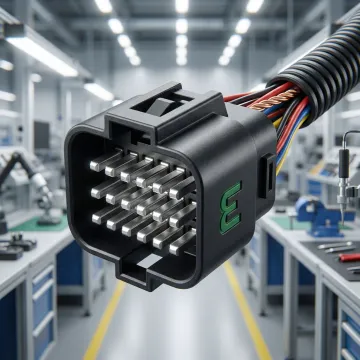

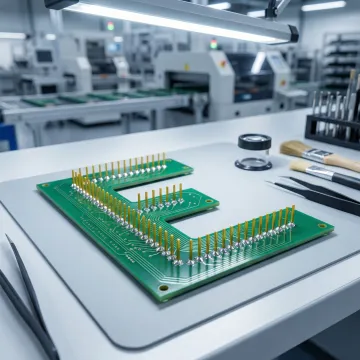

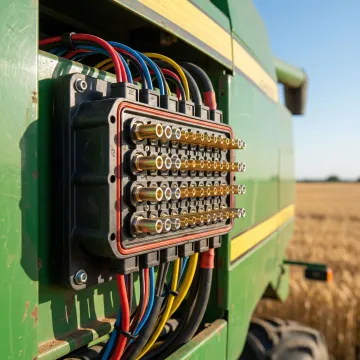

Electropin's cold-formed PCB mounting pins serve automotive, medical device, computer and electronics, and farm equipment industries. Applications include automotive electrical connectors and harness assemblies, medical device PCB connectors requiring zero-defect reliability, consumer electronics circuit board assemblies, and farm equipment connectors exposed to vibration and harsh outdoor environments.

Electropin can begin manufacturing and deliver a first batch of cold-formed pins in as little as two weeks when raw materials are available. Subsequent production batches are delivered on a customer-specified timeline, and production volume can be scaled dramatically when demand changes, thanks to high-speed automatic die rolling that produces up to 5 pins per second.
